Push Back Racking
Push Back Racking
Push back pallet rack system (also known as push-shelves), this shelves system efficient use of storage space, often used as a logistics center shelves. The goods in accordance with the principle of "advanced" placed in inclined raceway, carrying trolley running along the track, the tray carrying trolley in turn push back to the shelves internal effective depth pick in 5 tray-bit, first Drawers extraction, the next tray, slide to the self-pick-up point, effective use of a single access channel, is particularly suitable for the storage of cargo transit area management.
 |
 |
 |
 |
Push back pallet rack system features
1, suitable for warehouse warehouse cost per unit area is more expensive, such as cold storage, downtown prime location in warehouse
2, 20% -30% of the chosen
3, security and operation efficiency are easy to drive-in rack
4, compared with the ordinary shelves, can improve the utilization rate of about 60% of the ground
5, only supporting a reach truck or forklift trucks can be used, and forklift operator requirements into the low

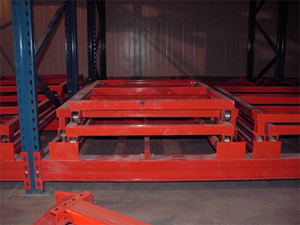

Push Back Racking column pieces, beams, track, carrying car. Orbit inclined at an angle fixed shelf beams, carrying trolley running along the track. Cargo tray from the front push tray items placed in the sliding seat, then fill in the original pushed to the rear, push up to five pallets. Cross slide on the slide, the slide itself has a tilt angle, the slide automatically slide into the front entrance. The overall structure of the principle of "clip" tray carrying a small car in turn pushed into the shelves internal access through the Rack, forklift does not need to enter inside the shelves, in the direction of the depth of the shelf can be designed for multiple trays position, push back pallet rack space utilization is higher than ordinary shelves. Safety and operation efficiency is much higher than through the Rack, widely used in cold storage, books, electronics and other industries.
